Conversion | Distribution DC/DC
OneBox Energy
Silent mode, onboard
energy management unit
For silent mooring & onboard autonomy

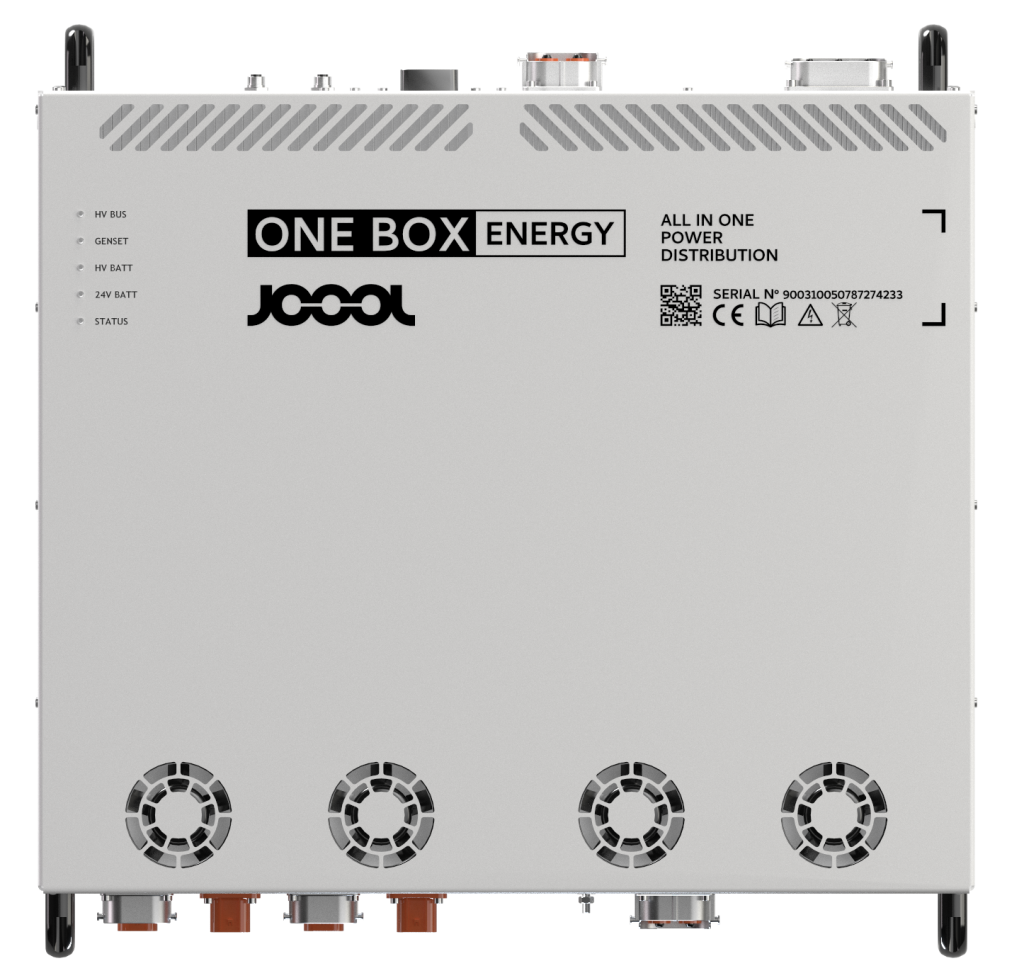

The OneBox Energy is the central unit of the JOOOL hybrid-electric system for motor yachts, catamarans and sailboats keeping their thermal engine. It centralizes all energy sources, manages distribution automatically and enables up to 152 kWh of onboard battery storage enough to power all hotel loads at anchor without running the generator.
AUTOMATED ENERGY MANAGEMENT
Configurations
The OneBox Energy manages all onboard power, battery storage, solar input, shore charging, and generator management, while the vessel retains its existing thermal propulsion. Hotel loads run silently from battery storage at anchor and in harbour. The EPMS manages generator cycling automatically, minimising runtime and fuel consumption.
- 3 output connectors — inverter 230VAC or DC bus
- Retains existing thermal propulsion
- Bidirectional 100A DC/DC
- Automated generator management
- Solar and shore power optimized simultaneously
- Up to 152 kWh — 4 units in parallel
FEATURE
Keys features
pre-wired and factory-tested before delivery : minimal on-site work
up to 3 units in parallel for high-capacity installations
EPMS integrated all energy flows managed automatically, no crew intervention
CAN 2.0A communication real-time data exchange with all system modules
Remote over-the-air updates EPMS software improved continuously
HVIL + IMD safety systems standard on every unit
IP68 industrial-grade connectors throughout
No specialist high-voltage certification required on-site for installation
| Specifications | Value |
|---|---|
|
Input battery capacity
|
1 x 21kWh to 4 × 38kWh |
|
Input battery charger [kW]
|
up to 2x6kW |
|
230V AC output
|
up to 3 X 6kW with external inverter |
|
BI directional DC/DC [A]
|
2 x 50A (24V) |
|
Input generator Voltage [VAC]
|
415-480 |
|
Weight [kg]
|
50 |
|
Dimensions LxHxD [mm]
|
700x700x282 |
|
Cooling
|
Air |
READY-TO-USE
Plug & Play integration
Battery Pack
A unit that enables energy conversion and distribution
for your boat.
Learn more
OneBox
A unit that enables energy conversion and distribution
for your boat.
Learn more
Electric Drive
Electric motor for reliable, silent,
and sustainable propulsion.
Learn more
Throttle
Precision control for electric & hybrid propulsion systems.
Learn more
EPMS
An intelligent onboard computer
to optimize energy management.
Learn more
Battery Pack
A unit that enables energy conversion and distribution
for your boat.
Learn more
OneBox
A unit that enables energy conversion and distribution
for your boat.
Learn more
PowerPod
Electric motor for reliable, silent,
and sustainable propulsion.
Learn more
Throttle
Precision control for electric & hybrid propulsion systems.
Learn more
EPMS
An intelligent onboard computer
to optimize energy management.
Learn more
COMPATIBILITY
Compatible with
QUESTIONS
Everything you want to know
Yes. The battery packs, EPMS, and installation architecture are shared across both configurations. Upgrading involves replacing the OneBox module and adding the PowerPod, the electrical infrastructure already in place is compatible. JOOOL's engineering team can advise on the upgrade pathway for each vessel.
Up to three OneBox units can run in parallel on the same vessel, for total battery storage up to 456 kWh and combined AC output up to 18 kW. For the Propulsion configuration on a catamaran, two OneBox Propulsion units drive two PowerPods independently.
